Your current location :Home / Products / Drying equipment series / ZS centrifugal vibrating screen
ZS centrifugal vibrating screen
This machine is composed of a hopper, an oscillation chamber, a coupling, and a motor. The oscillation chamber consists of eccentric wheels, rubber software, main shafts, bearings, etc. The adjustable eccentric weight is driven by a motor to reach the centerline of the main shaft, generating centrifugal force in an unbalanced state, causing changes in material strength and forming track vortices inside the screen. The amplitude of the heavy hammer adjuster can be adjusted according to different materials and screens. The entire machine has a compact structure, small size, no dust, low noise, high quality, low energy consumption, and convenient mobile maintenance.
13606122988
Details

Equipment characteristics

  The ZS series layered sieve is suitable for flow operations and is an ideal equipment for continuous discharge of materials with varying proportions of coarse and fine particles.


Parameters

Project specifications

ZS-350

ZS-515

ZS-650

ZS-800

ZS-1000

ZS-1200

Production capacity(kg/h)

50-300

100-500

150-800

180-1000

200-1800

250-2000

Meshes(mesh)

12-80

12-80

12-80

12-80

12-80

12-80

Power(kw)

0.55

0.75

1.1

0.75

1.1

1.5

Spindle speed(rpm)

1380

1370

1370

1500

1500

1500

Overall dimensions(mm)

540×540×1060

710×710×1290

880×880×1350

900×900×1200

1100×1100×1200

1300×1300×1200

Net weight(kg)

100

180

250

300

400

500

All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.

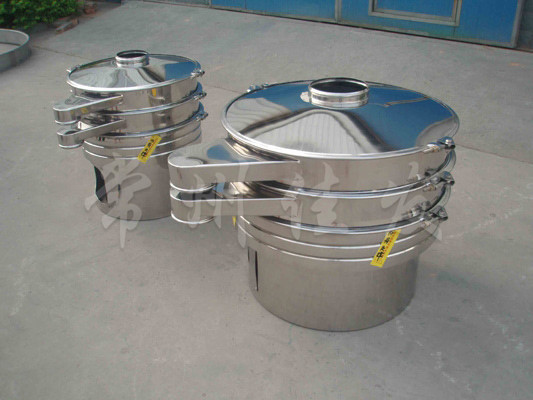

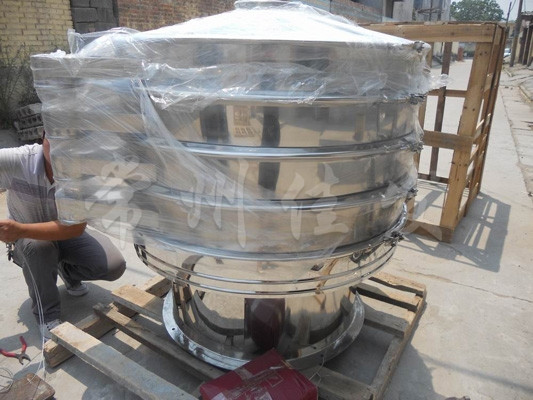

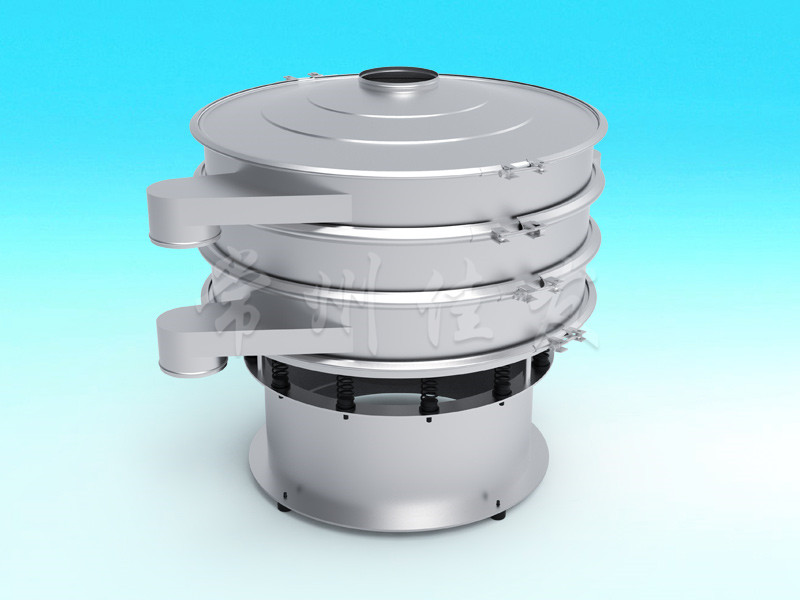

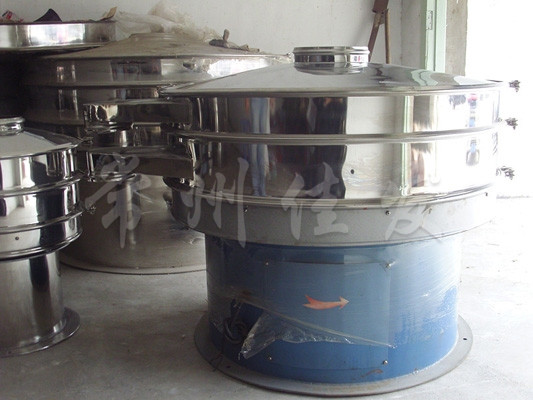

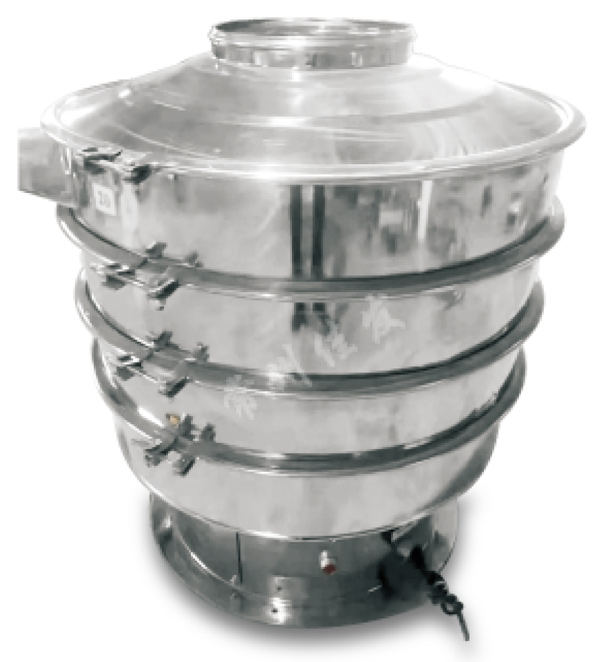

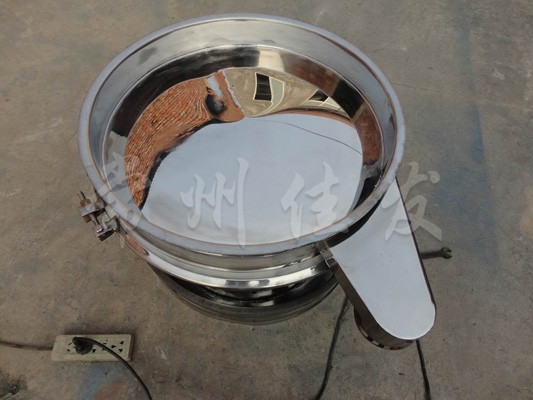

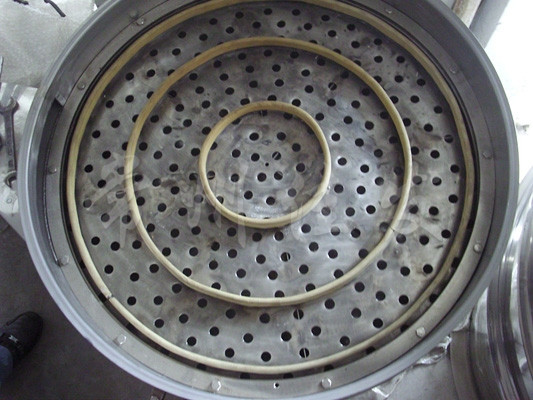

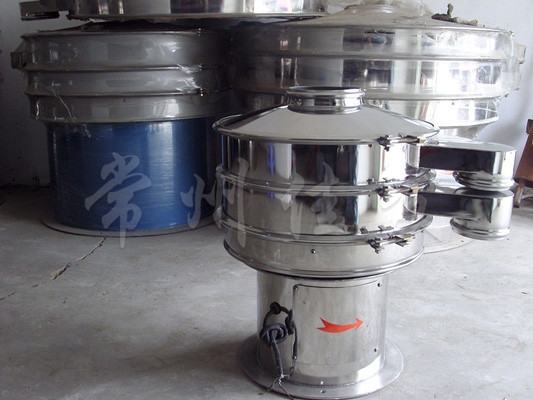

Photos
