Working principle

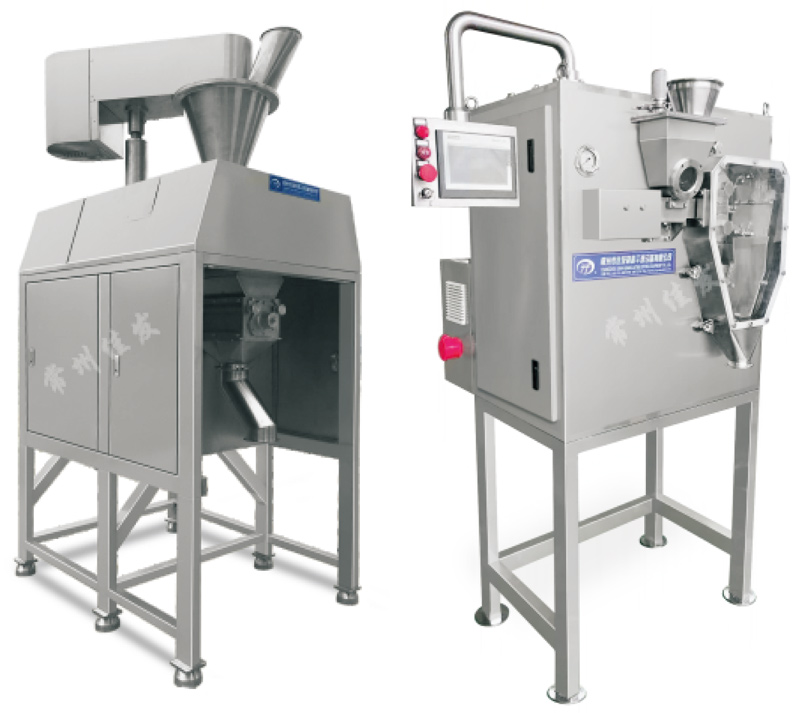

This machine is a new equipment that directly converts powder into particles. The machine has a novel and reasonable structure, stable and reliable performance, and convenient cleaning and maintenance.
The granules produced by this mechanism can be used as tablet preparations, granules, capsules, etc. This machine is mainly used for granulation in pharmaceutical, food, chemical, and other industries. Especially suitable for granulation of materials that cannot be solved by wet methods.
Application area
★Medicine: Tablet pressing granules, capsule filling granules, etc.
★Food: Food manufacturing particles, seasoning particles, etc.
★Plastic: Various plastic shaped particles.
★Chemical industry: Particles such as catalysts, pigments, detergents, and other chemical raw materials.
Equipment characteristics
★The dry powder particles have uniform density, good solubility, and high granulation rate.
★Special feeding structure ensures effective feeding.
★Roller water circulation cooling ensures that there will be no material sticking to the roller.
★No wetting agents such as water or ethanol are required, no secondary heating and drying is required, with fewer processes, high work efficiency, and low cost.
★Adopting an electric hydraulic device, the operation is simple and reliable, with a high degree of automation.
★The sealing operation is pollution-free and meets the requirements of drug hygiene.
★Especially suitable for granulation of materials that cannot be solved by wet methods.
Model | 50 | 100 | 120 | 200 | 300 |
Production capacity (kg/batch) | 10-30 | 30-100 | 40-120 | 50-200 | 100-300 |
Hopper volume (L) | 3 | 5 | 7 | 10 | 15 |
Roll width (mm) | 50 | 100 | 120 | 200 | 280 |
Roll pressure (Mpa) | 0-7 | 0-7 | 0-7 | 0-7 | 0-7 |
Roll speed | 1-60r/min (Frequency Control VVVF) | ||||
Feeding speed | 1-80r/min (Frequency Control VVVF) | ||||
Roller drive motor(kw) | 3 | 7.5 | 11 | 13.5 | 32.7 |
Feeding drive motor(kw) | 1.1 | 2.2 | 2.2 | 3 | 3 |
Whole grain drive motor(kw) | 1.1 | 2.2 | 2.2 | 3 | 7.5 |
Oil pump drive motor(kw) | 0.75 | 1.1 | 1.1 | 2.2 | 2.2 |
Overall dimensions (length, width, height) | 1.2x0.7x1.7 | 1.8x1.2x2.1 | 1.8x1.3x2.2 | 2.1x1.5x2.3 | 2.2x1.8x2.5 |
Weight (T) | 1 | 1.5 | 2 | 2 | 3 |
All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.
